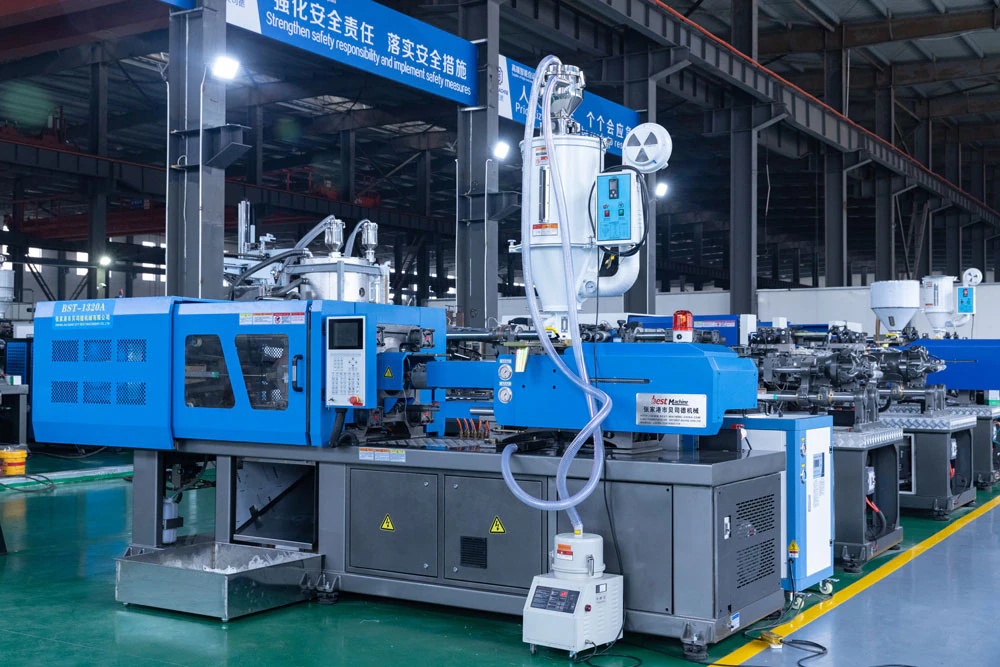

🇷🇺Horizontal Injection Molding Machine
High precision, stable performance, and energy efficiency. Ideal for producing a wide range of plastic products.
Product Overview
The most compact model in the published range, intended for molds that fit its 410 × 375 mm tie-bar spacing and 150–420 mm mold-thickness envelope.
Typical evaluation areas include small precision parts, lightweight closures, compact consumer components. Final machine selection must be checked against the mold dimensions, resin, part weight, cycle target and auxiliary equipment.
High-precision servo control for stable, efficient operation
High-rigidity clamping unit for accurate mold opening and closing
Energy-saving servo motor system with fast response
User-friendly multi-language control interface
High-quality hydraulic components for long service life
Safety door and electrical interlock protection
Wide application range for packaging and technical components
Global after-sales service and spare-parts support
Technical Specification
| Parameter | Unit | BST-1320A | BST-1400A | BST-1650A |
|---|---|---|---|---|
| INJECTION UNITScrew Diameter | mm | 38 / 40 | 36 / 40 | 42 / 45 |
| Shot Size (Theoretical) | cm³ | 210 / 228 | 256 / 280 | 318 / 362 |
| Shot Weight | g | 188 / 205 | 230 / 252 | 286 / 326 |
| Injection Pressure | MPa | 176 / 160 | 176 / 160 | 174 / 151 |
| Injection Rate | g/s | 95 / 100 | 95 / 100 | 135 / 155 |
| Screw L/D Ratio | L/D | 22.8 / 21.7 | 23.4 / 22.2 | 22.3 / 20.8 |
| Screw Speed | rpm | 0-190 | 0-190 | 0-190 |
| Nozzle Diameter | mm | 10 | 10 | 10 |
| CLAMPING UNITClamping Force | kN | 1320 | 1400 | 1650 |
| Toggle Stroke | mm | 350 | 365 | 405 |
| Mold Thickness | mm | 150-420 | 150-420 | 170-440 |
| Space Between Tie Bars | mm | 410×375 | 428×386 | 455×425 |
| Ejector Stroke | mm | 135 | 140 | 155 |
Machine Details
Intelligent Control
The machine is controlled by a TECHMATION microcomputer, providing reliable operation and a high level of automation.
Plasticizing Unit
The screw feeds raw material and supports the processing of a wide range of plastics. It provides strong plasticizing performance and high injection speed. Resistance heating coils heat the barrel, while a cold-screw protection device prevents operation until the preset temperature is reached.
Hydraulic System
The hydraulic control system manages actuator movement. Key hydraulic components use internationally recognized brands such as Japan YUKEN, delivering fast response and high energy efficiency. An optional energy-saving hydraulic system can reduce energy consumption by approximately 50%.
Power System
The AC driving motor supports 380 V three-phase or 220 V single-phase, 50 Hz power configurations. It efficiently converts electrical energy into mechanical power to start and drive the injection molding machine.
Applications
Caps, lids, bottles and packaging parts.
Medical devices, connectors and precision parts.
Household items, containers and consumer products.
Technical parts and engineering plastic products.
