Extrusion Blow Molding

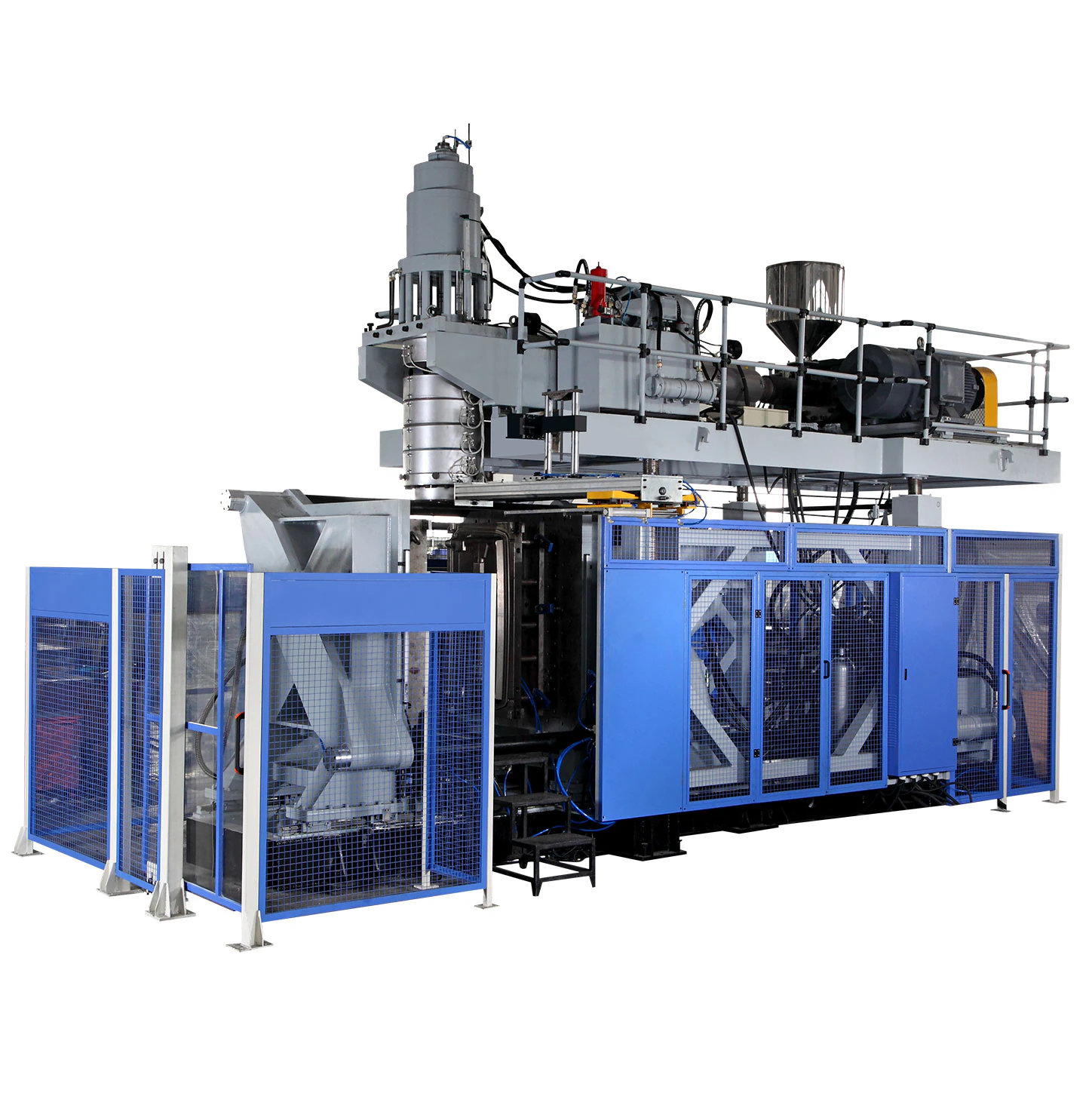

Blow Molding Machine

A versatile range of extrusion blow molding machines designed for stable, efficient production of hollow plastic containers from 2 L to 160 L, from daily-use packaging to large industrial containers.

2–160 LContainer Capacity

300–1,500 pcs/hrOutput

40–800 kNClamping Force

8 ModelsAvailable Models

Your Name *Email Address *WhatsApp *

Product Interest *

Message *Attach product drawings or reference images

Applications

Versatile Solutions for Hollow Plastic Production

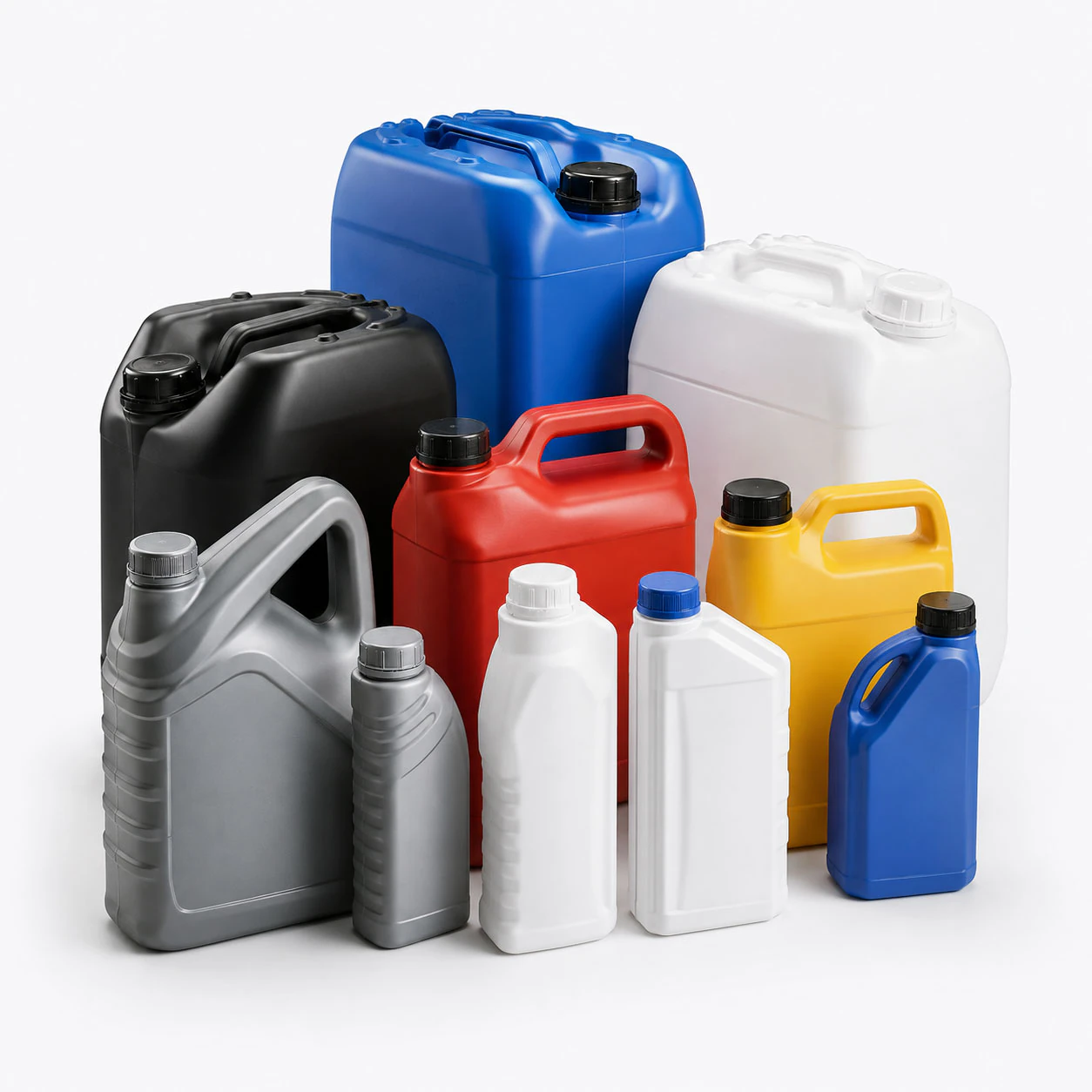

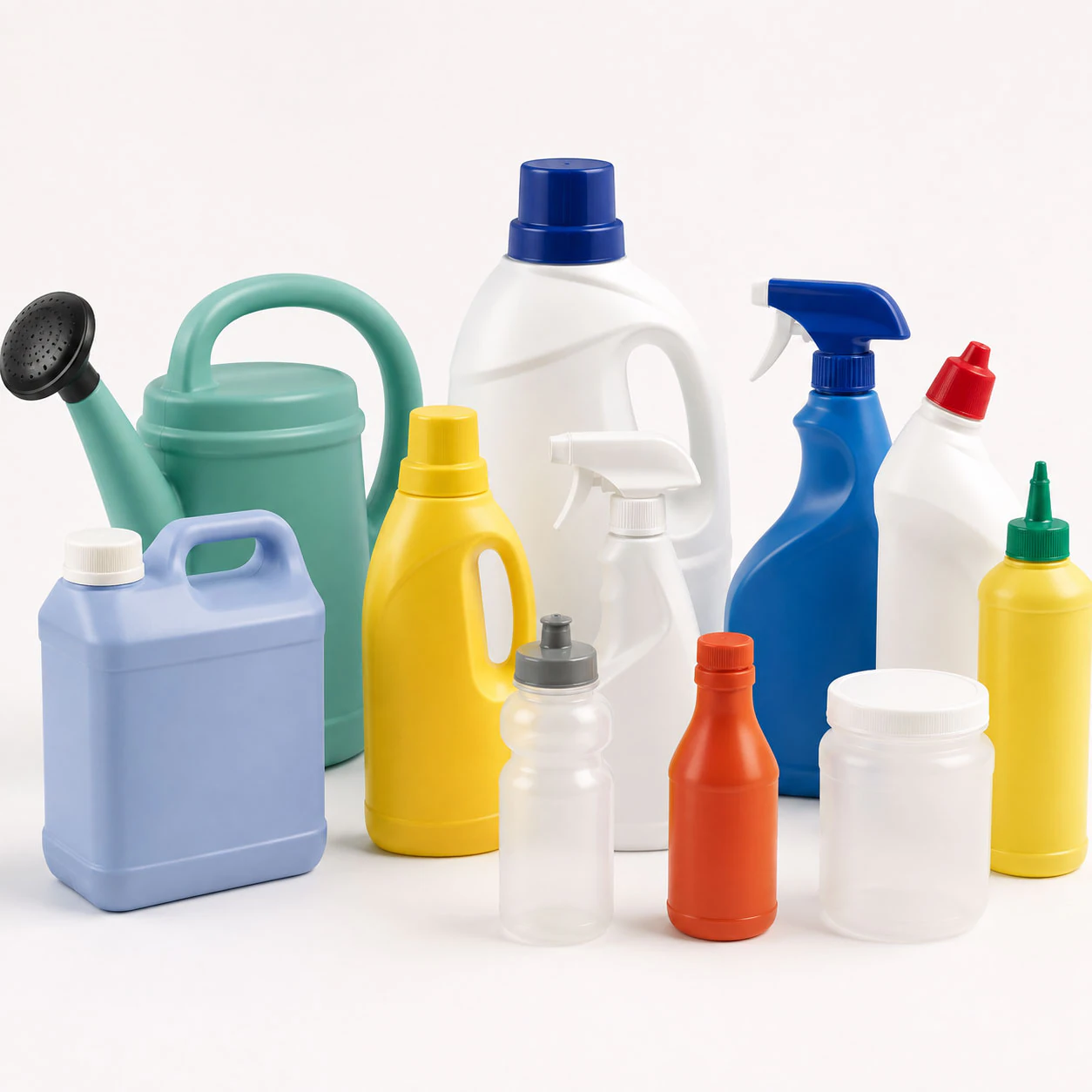

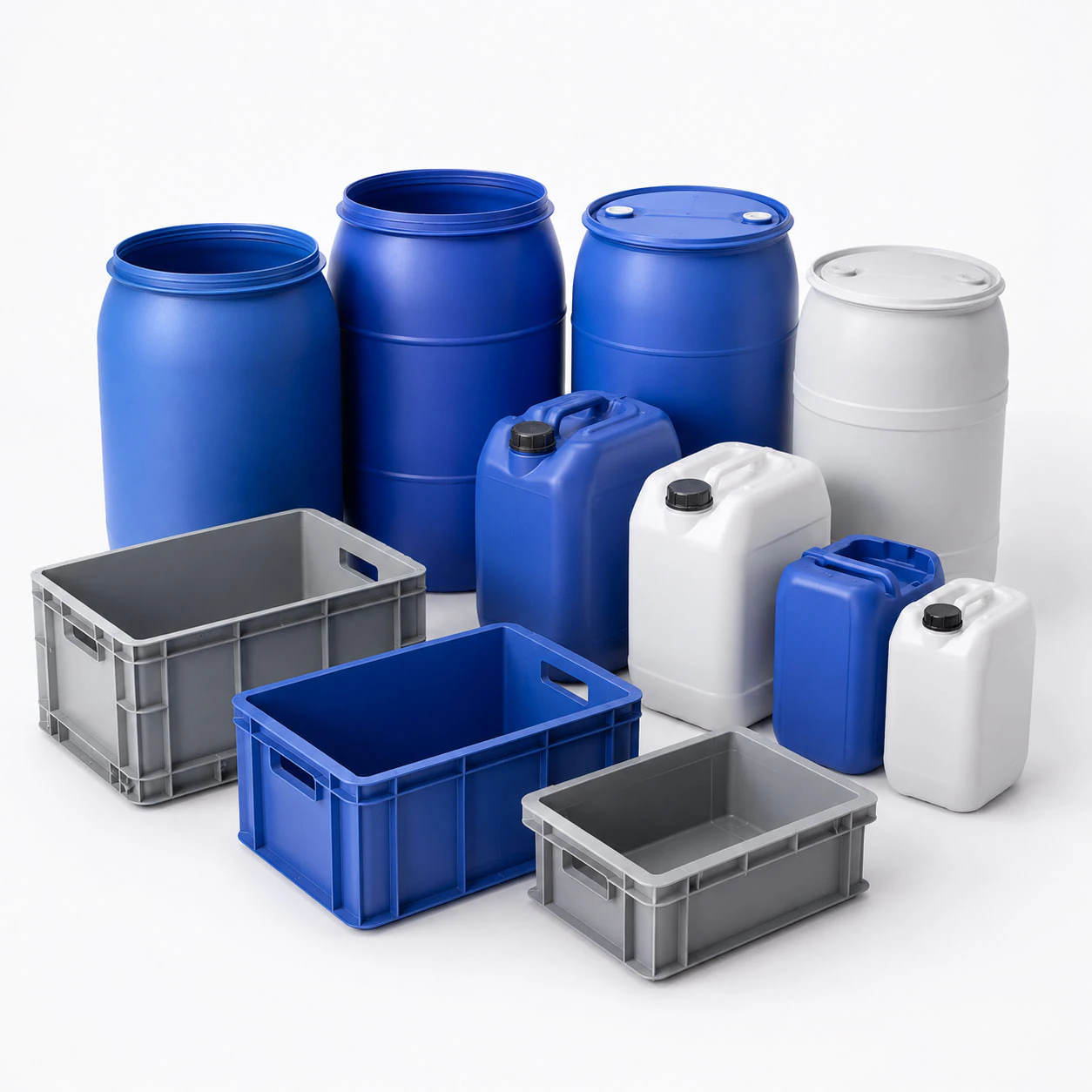

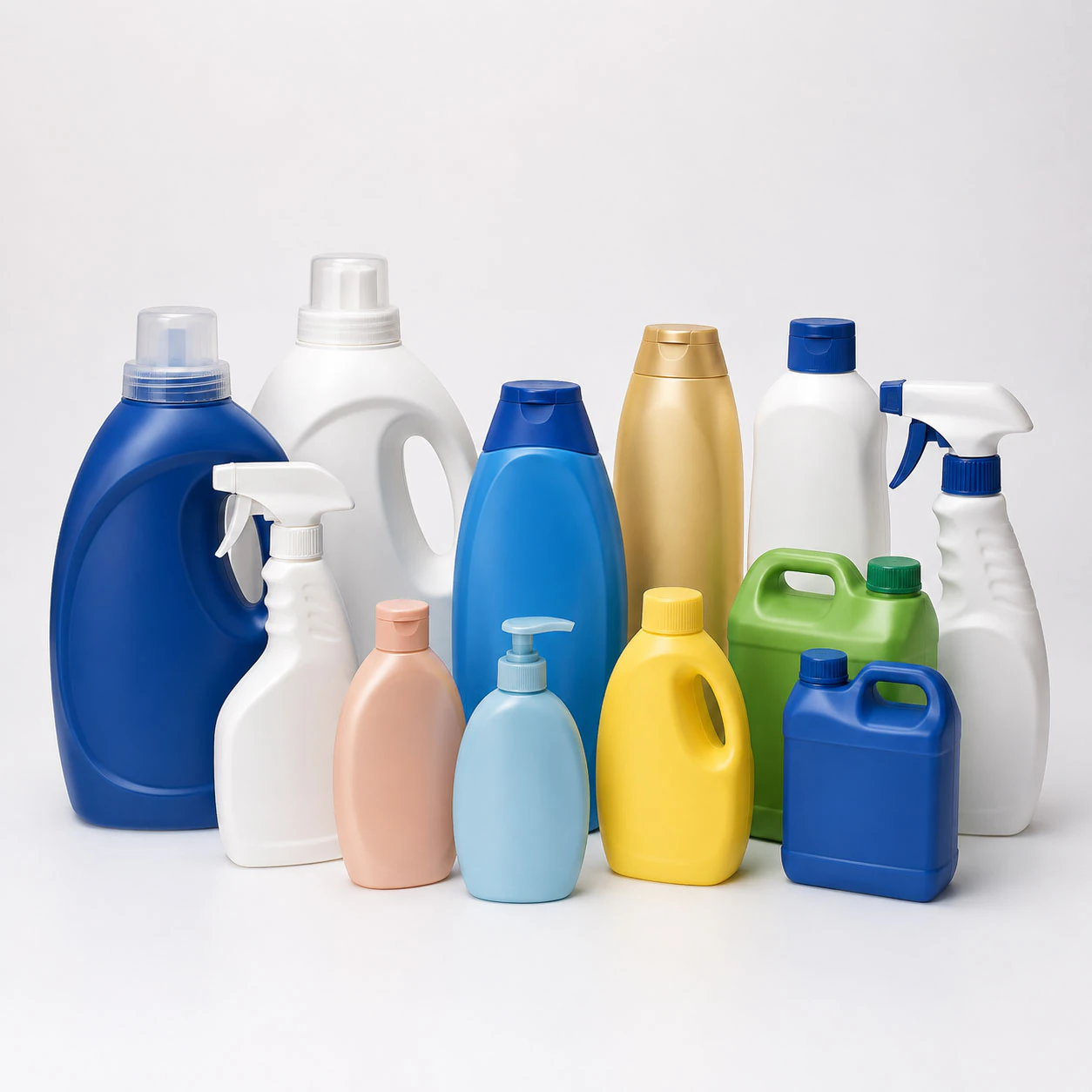

Designed for the efficient production of daily-use packaging, chemical containers, industrial drums, jerry cans, bottles, and other hollow plastic products.

Technical Specification

Blow Molding Machine Parameters

Specification	Unit	BST50H	BST60H	BST70H	BST80H	BST90H	BST100D-80L	BST100D-120L	BST100D-160L
Max Container Capacity	L	2	5	12	30	60	80	120	160
Output (Dry Cycle)	pcs/hr	1500	1100	900	360	360	360	360	300
Machine Dimensions(Д × Ш × В)	m	3 × 1.7 ×2.3	3.0 × 1.7 ×2.5	3.8 × 2.2 ×2.7	4.5 × 2.4 ×3.5	5.1 × 2.5 ×3.9	5.5 × 2.8 ×4.5	4.8 × 2.8 ×4.5	5.8 × 2.6 ×4.7
Total Weight	t	3.2	4.2	5.2	11	12.8	16	16	20
Clamping Force	kN	40	65	120	180	350	430	550	800
Platen Opening Stroke	mm	138–368	168–528	280–660	400–900	500–1050	550–1250	550–1400	600–1500
Platen Size	mm	300 × 320	320 × 380	520 × 540	760 × 700	950 × 900	1000 × 1350	1100 × 1100	1250 × 1600
Max. Drive Power	kW	16.5	36	37	41	52	60	60	65
Total Power	kW	22	32.5	58	52	66	78	78	82
Screw Diameter	mm	50	60	70	80	90	100	100	100
Screw L/D Ratio	L/D	24	24	24	24	24	24	25	28
